MATRIX Sebiu Labs Available · Free 30-Day Trial

SebiuLabs Matrix for NDI

Route any NDI® source to any destination across your whole facility — a crosspoint matrix router, single-stream preview, and NDI Discovery/Access server, in one small box.

↓ Download for Windows ↓ Linux appliance ISO Data sheet (PDF)

Free 30-day trial — Linux ISO appliance & Windows installer (Docker image too) · node-locked, one licence per box

What it does

Routing uses NDI's native redirect — no video passes through the box, so switching dozens of destinations costs almost nothing. A 4-core box handles pure routing comfortably, and even light audio muxing / breakaway runs fine on modest hardware — only heavy Distribution-Amplifier fan-out or big multichannel mixes want more cores.

Crosspoint matrix

Route any source to any destination. Matrix, X-Y take, and per-output control views.

Preview + audio meters

Preview any source with a side meter bridge — MONO / STEREO / multichannel with per-channel levels.

Discovery / Access server

Host the NDI Discovery Server, manage Groups & external sources. Optional backup DS for redundancy.

Distribution Amplifiers

Receive a weak source once, re-serve it to many — offload cameras and encoders.

Audio breakaway & mixing

Take a destination's video from one source and its audio from another, or a mix.

Salvos & presets

Store and recall whole routing layouts — switch a scene in one click.

Failover PRO · beta

Per-source and box-HA failover — switch on death, black or freeze.

Router-control PRO

SW-P-08, Blackmagic Videohub and TSL UMD — drops into VSM, Ross, NVision and Companion.

See it in action

Click any shot to view it full screen.

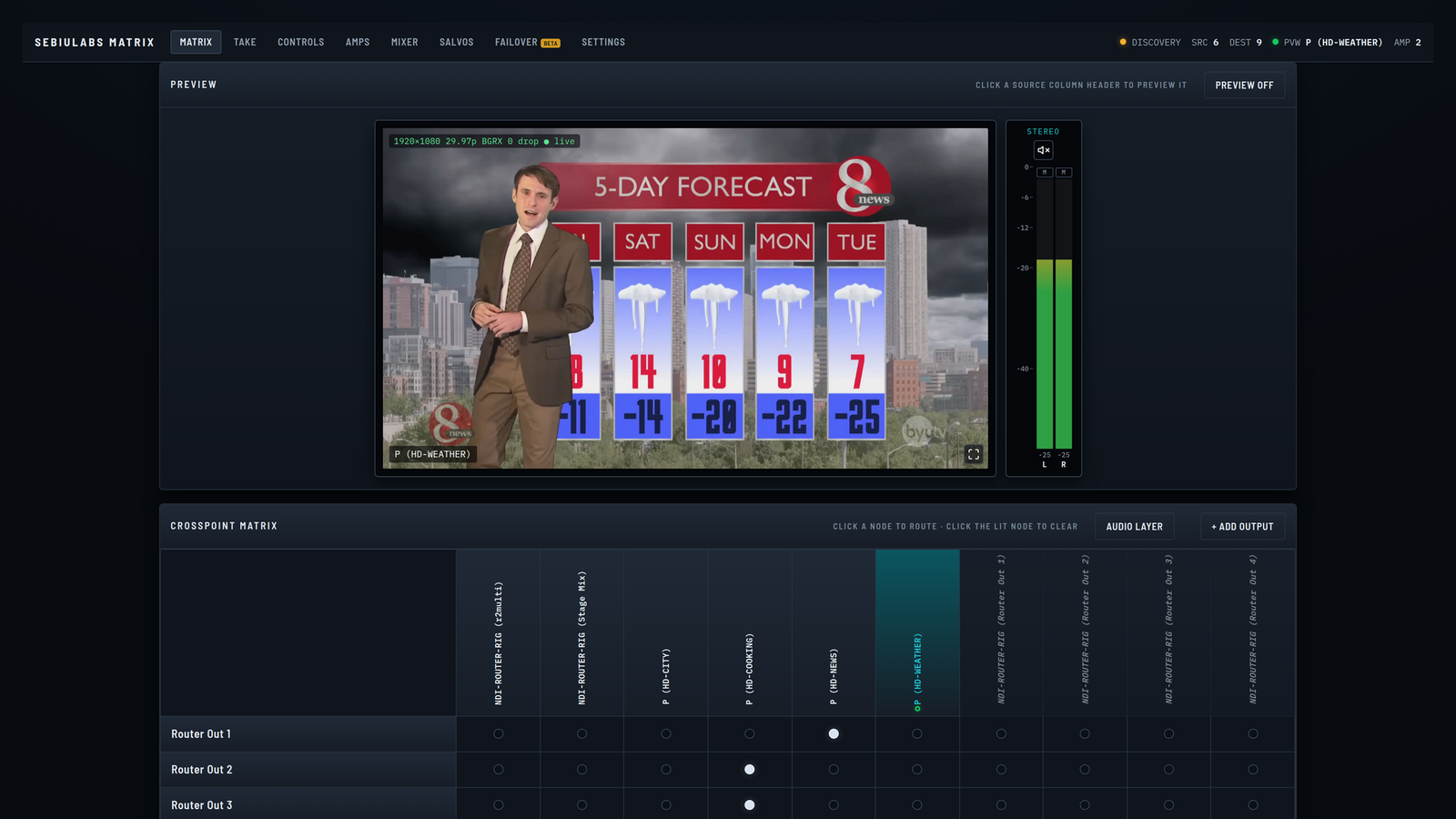

Crosspoint matrix with a live single-stream preview and lit routes — Crosspoint matrix — route any NDI source to any output, with a live single-stream preview and audio meters.

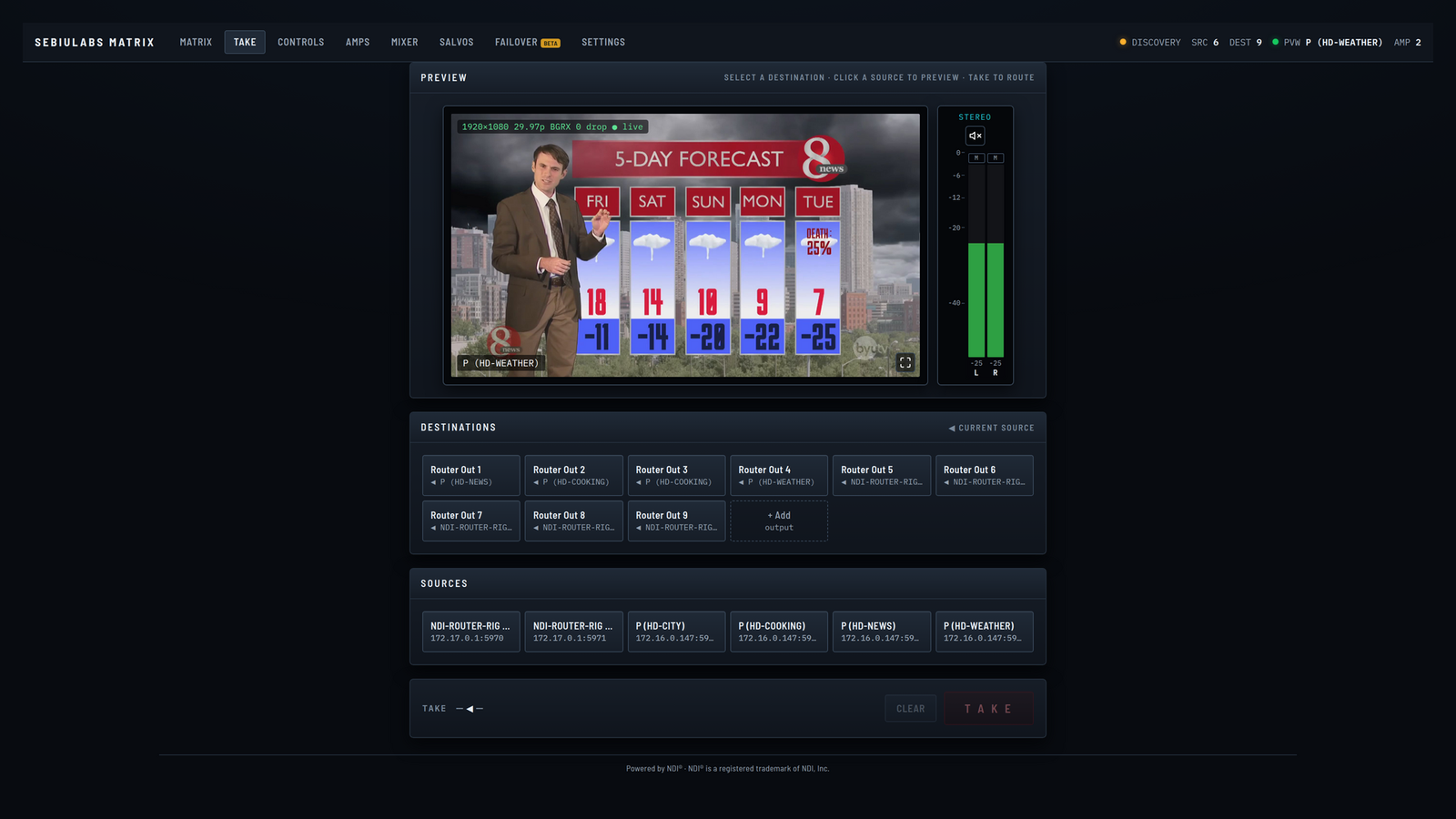

X-Y Take panel with destination and source lists and a live preview — X-Y take — pick a destination, preview a source, take it to air.

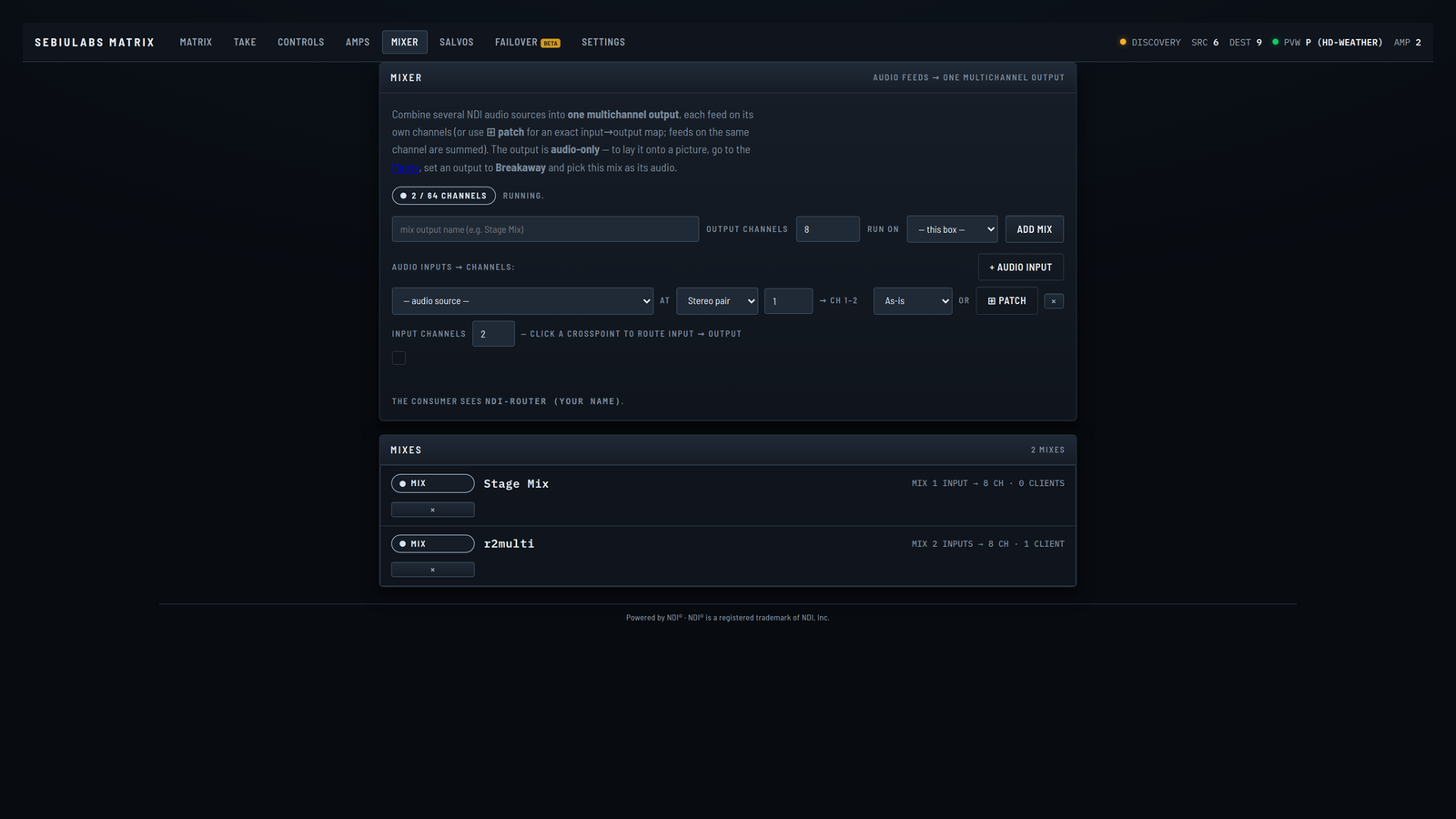

Audio mixer showing breakaway and multichannel muxing on the outputs — Audio **breakaway** & mixer — split audio from video and mux multichannel on any output.

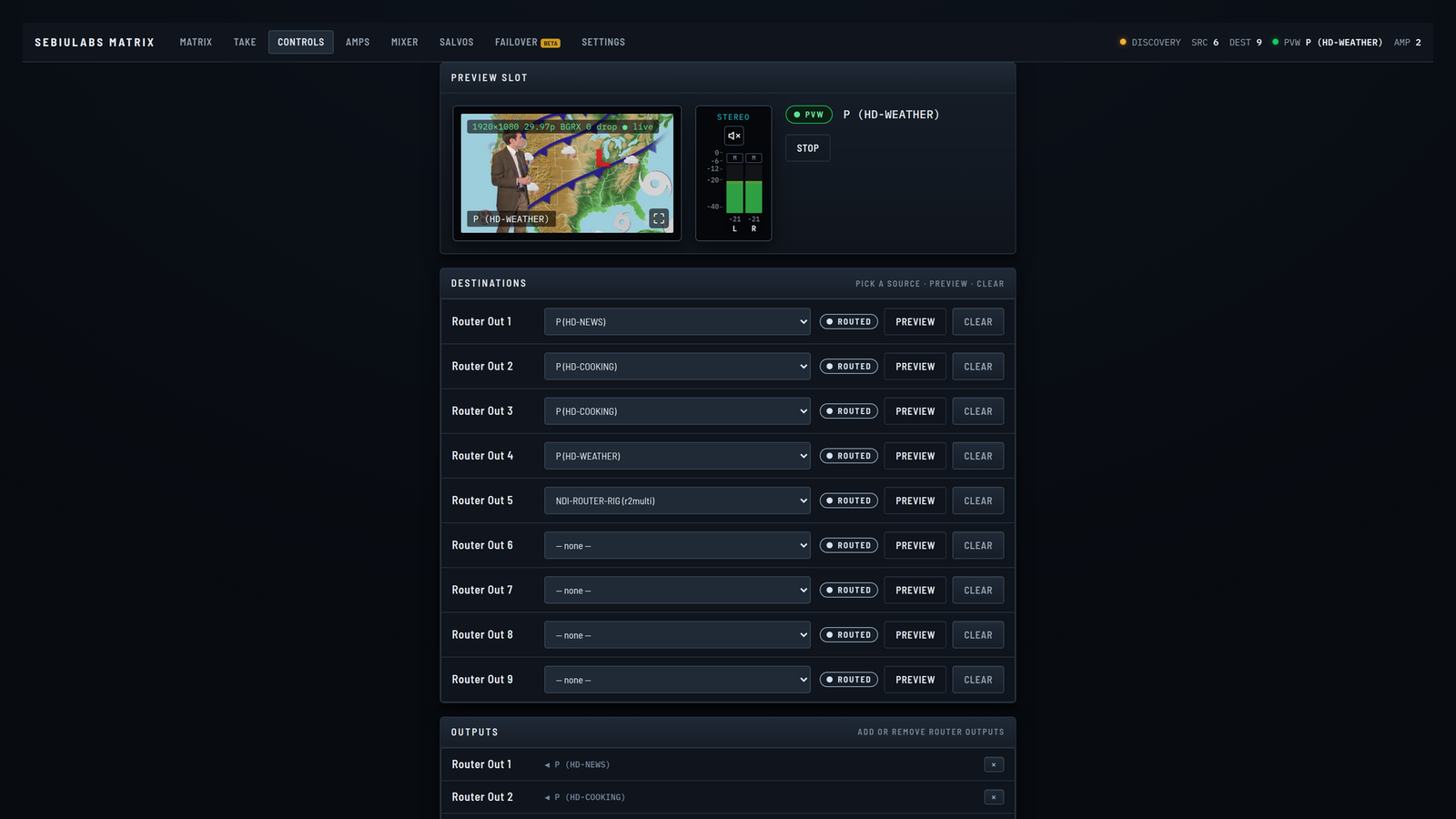

Per-output control view with a source picker and preview for each destination — Per-output control — a source picker, preview and clear for every destination.

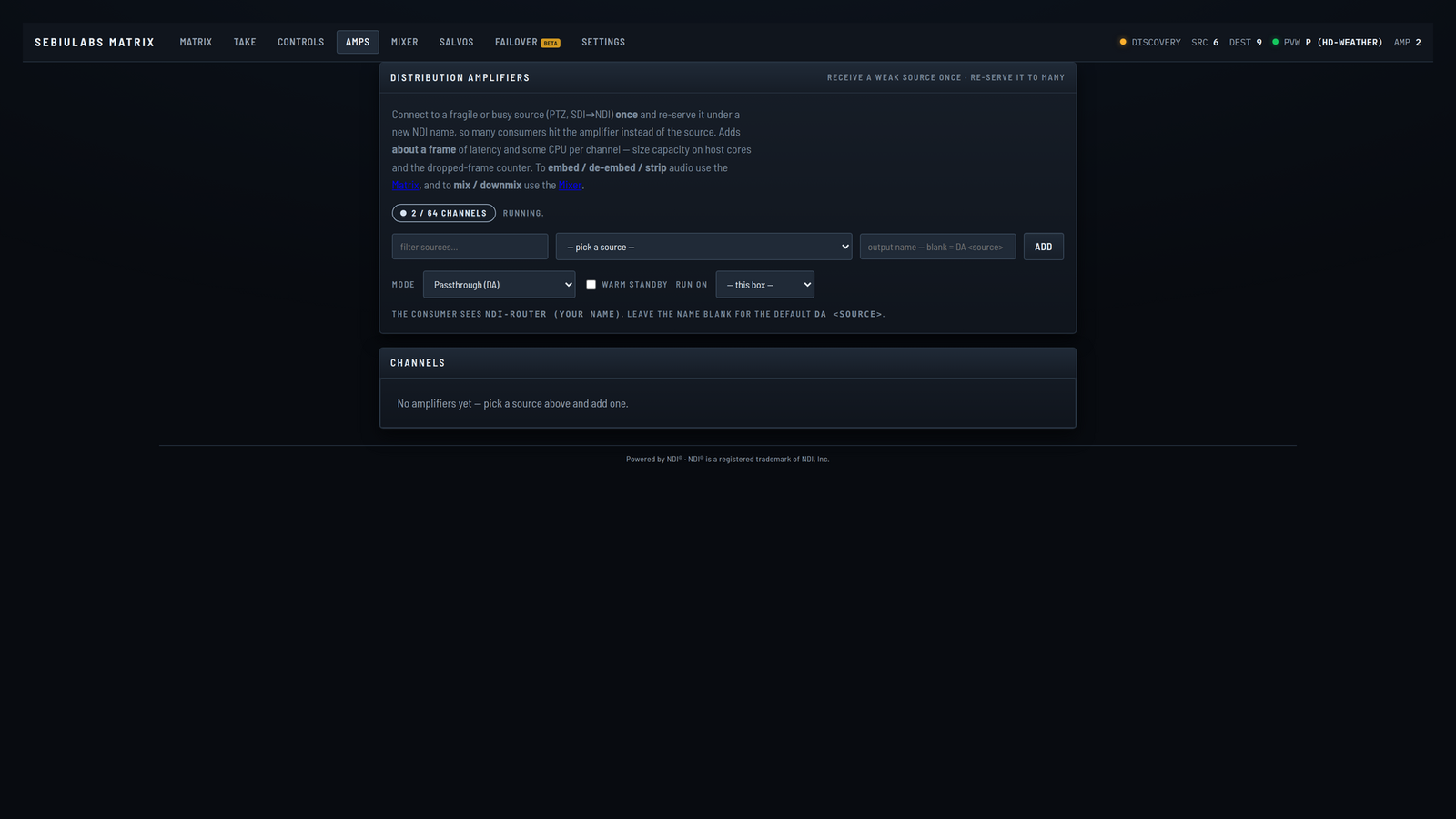

Distribution amplifiers panel — Distribution amplifiers — receive a source once, re-serve it to many.

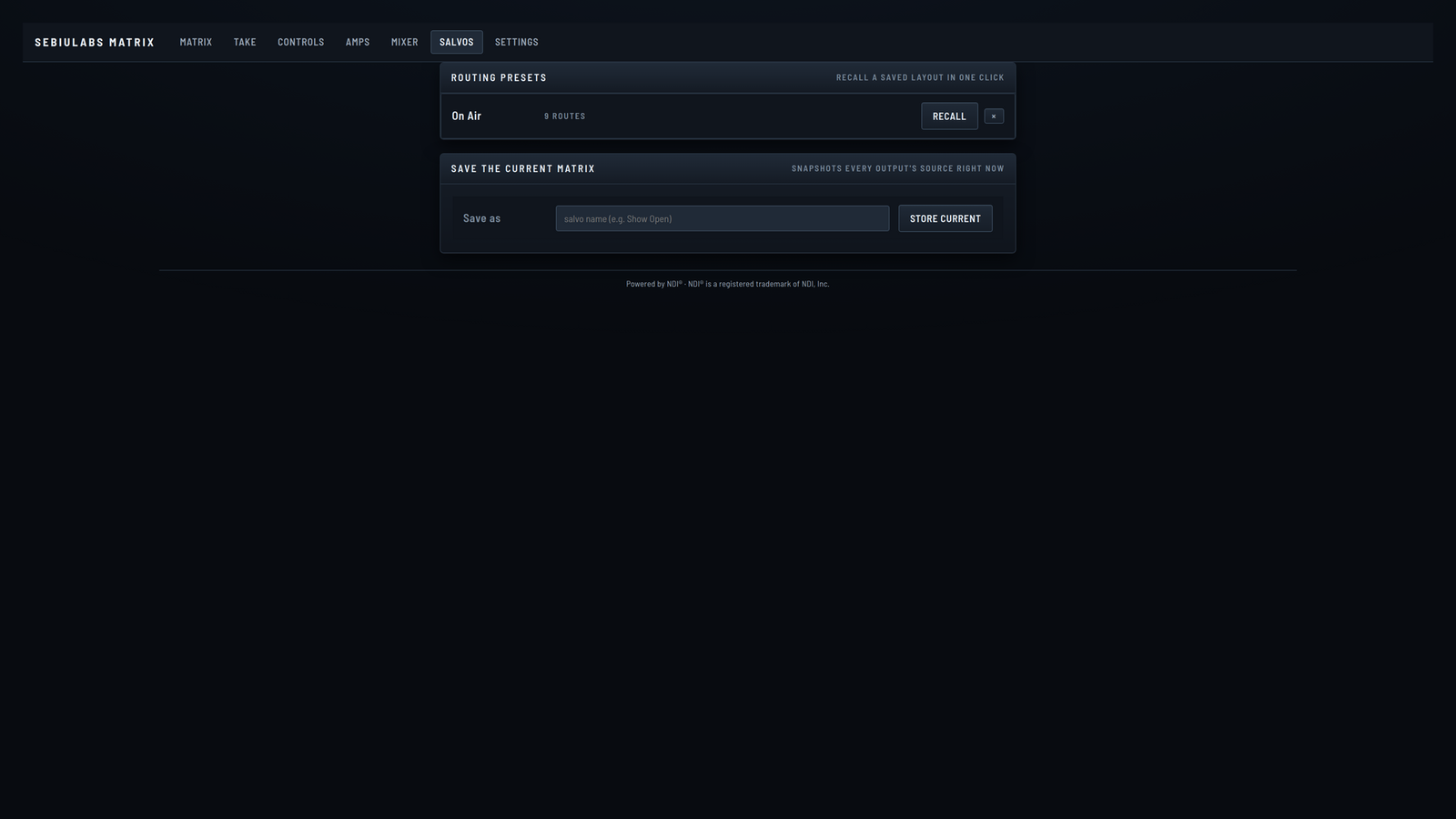

Salvos routing presets with recall — Salvos — store and recall a whole routing layout in one click.

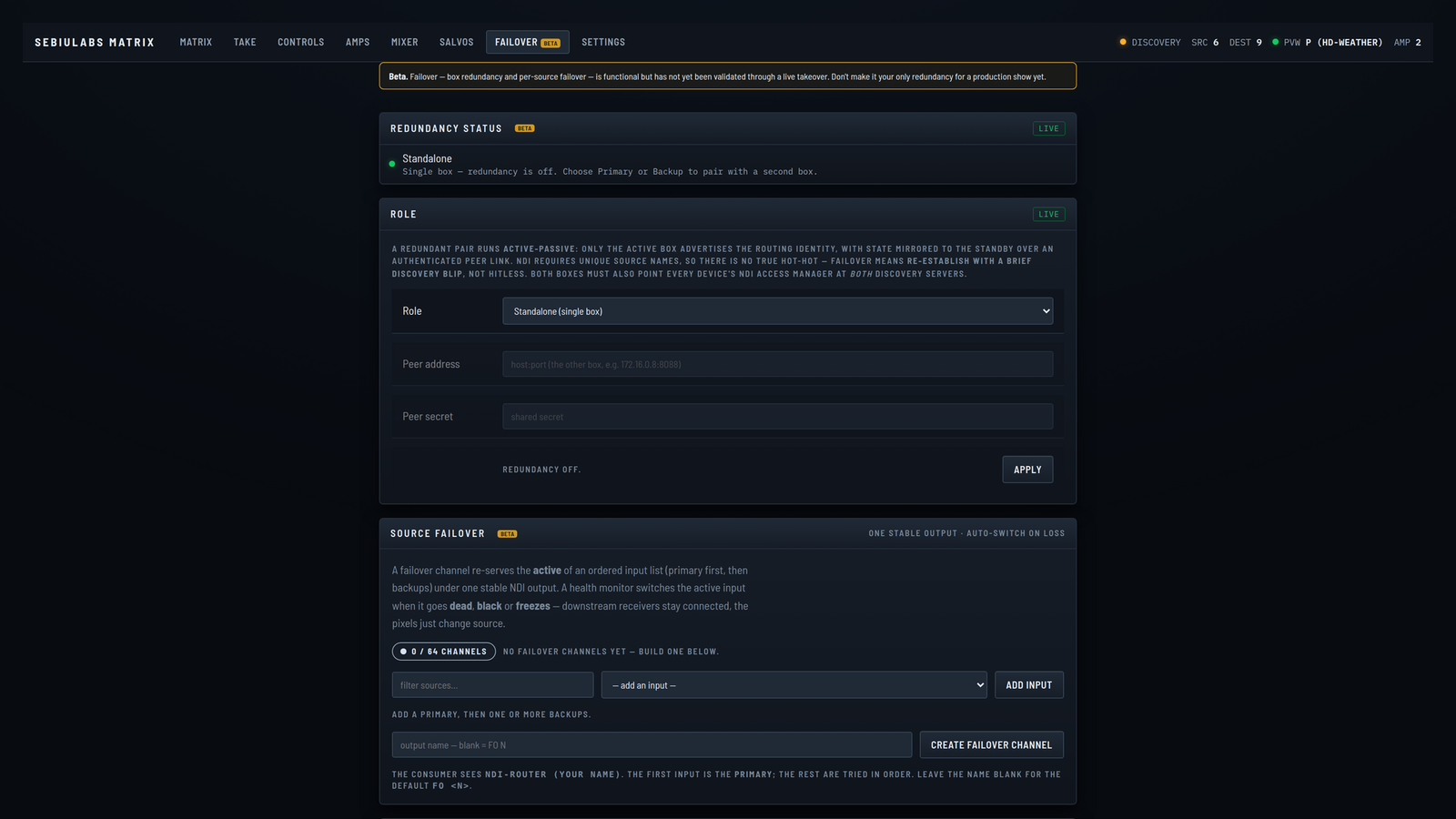

Failover configuration for per-source and box-HA redundancy — Failover (Pro) — per-source and box-HA redundancy that degrades gracefully.

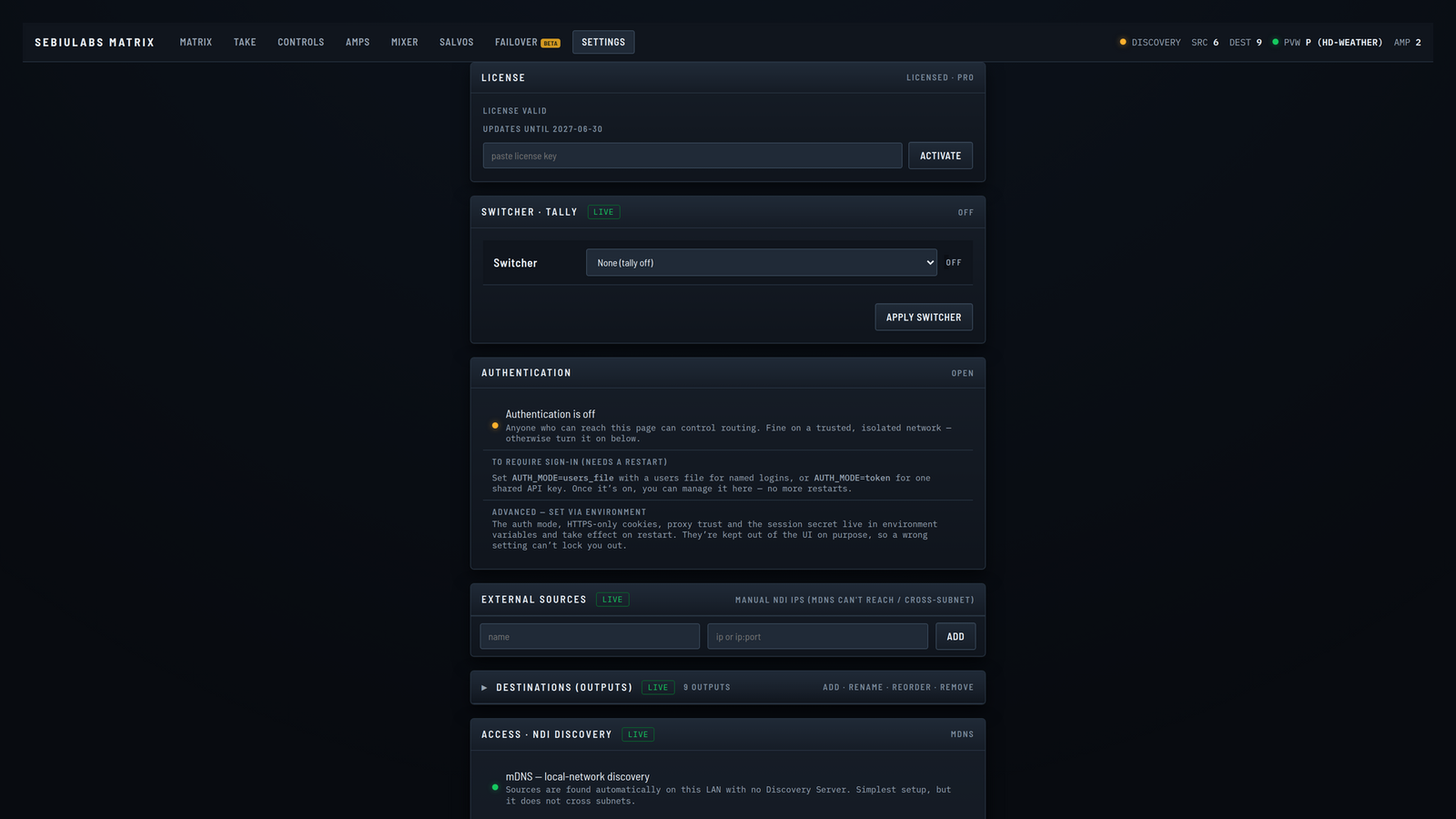

Settings with discovery, access control and licensing — Discovery / Access server, access control & licensing — with a backup DS for redundancy.

Editions & pricing

One-time purchase, includes 1 year of updates. No subscription. 30-day full-feature trial; licensed per box.

	Standard£150 one-time	Pro£450 one-time
Crosspoint routing, salvos, preview, tally	✓	✓
Discovery / Access server	✓	✓
Matrix size	32 × 64	Unlimited
Distribution Amplifier / audio channels	4	Unlimited
Failover (per-source + box-HA, beta)	—	✓
Processor nodes (scale across extra machines — physical or VM)	—	✓
Router-control: SW-P-08 · Videohub · TSL UMD	—	✓

A lapsed or absent licence degrades to Standard — the box never stops working.

Three ways to run it

Docker

Host-networked container on any Linux box.

Linux ISO

Self-contained appliance — burn, boot, done. Hosts the Discovery Server.

Windows installer

Background service + local HTTPS. Runs alongside vMix / NDI Tools.

Requirements

x86-64 Linux host or Windows 10/11 (Docker, ISO, or installer)
Gigabit Ethernet — required for NDI
Modest hardware — pure routing carries no video through the box, so a 4-core box is plenty; light audio muxing / breakaway is fine on modest hardware too. Only heavy Distribution-Amplifier fan-out or large multichannel mixes need more cores.

Download the free 30-day trial above — every install starts with a full-feature trial, no card required. Questions? contact@sebiulabs.co.uk.

The whole product, in under a minute

A narrated overview (0:58) — the crosspoint matrix and audio breakaway, take-bar control and salvos, distribution amplifiers and the mixer, monitoring and failover.
